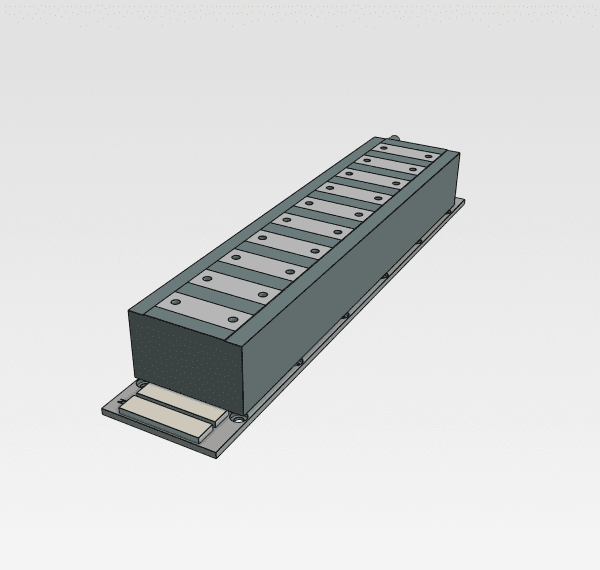

Platen, Core Type Linear Motor
TAS-CM50Y(SM)
TSA-CM50y(SM) has improved driving force by applying
laminated core Optimal design of efficient
magnetic circuit
laminated core Optimal design of efficient
magnetic circuit
Rated Condition : Continuous
Voltage Endurance : AC1500V, 1Min
Operating Temperature : 0~40oc
Power : 3-phase AC200~230V
Specification
General Dimensions
Specification
| CM50Y | CM50YSM | ||
|---|---|---|---|
| Force [N] | Continuous | 580 | 670 |
| MAX | 1740 | 2010 | |
| Curmet [Ams] |
Continuous | 5.1 | 5.1 |
| MAX | 15.3 | 15.3 | |
| Black EMF [Vrms / (m/sec]] | 38.1 | 44.7 | |
| Force Constant [N/Arms] | 113.7 | 133.1 | |
| Resistance [Ω] | 6.3 | 7.3 | |
| Inductance [mH] | 39.6 | 54.3 | |
|
Magnetic Attraction Force [N] |
1500 | 1500 | |
| Mover Mass [Kg] ¹⁾ | 5.3 | 5.3 | |
1) With Hall Sensor Module

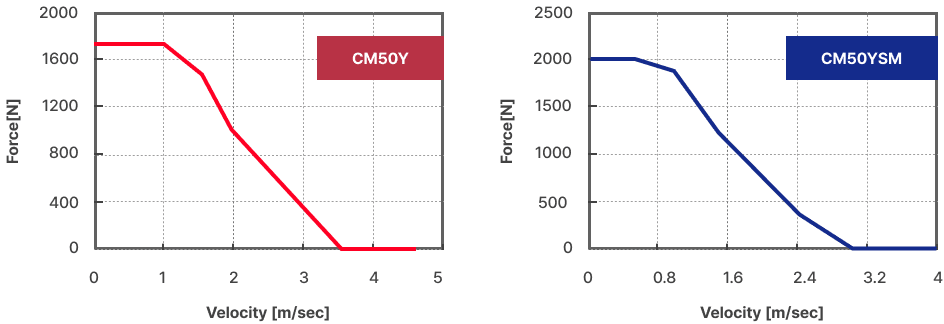

Force-speed characteristic
General Dimensions (Linear Motor)
| MODEL (CM) | WEIGHT (KG) |
|---|---|
| CM50Y | 5.3 |
| CM50YSM |
Motor Power
| PIN | Signal | Color |
|---|---|---|
| 1 | U | Red |
| 2 | V | Yellow |
| 3 | W | Blue |
| 4 | FG | Green |
※ Housing : Amp 172167-1
Hall Sensror
| PIN | Signal | Color | PIN | Signal | Color |
|---|---|---|---|---|---|
| 1 | HA | Orange | 4 | 5P | Red |
| 2 | HB | White | 5 | 5G | Black |
| 3 | HC | Blue | 6 | SHILED | - |
※ Housing : Molex 5557-06R

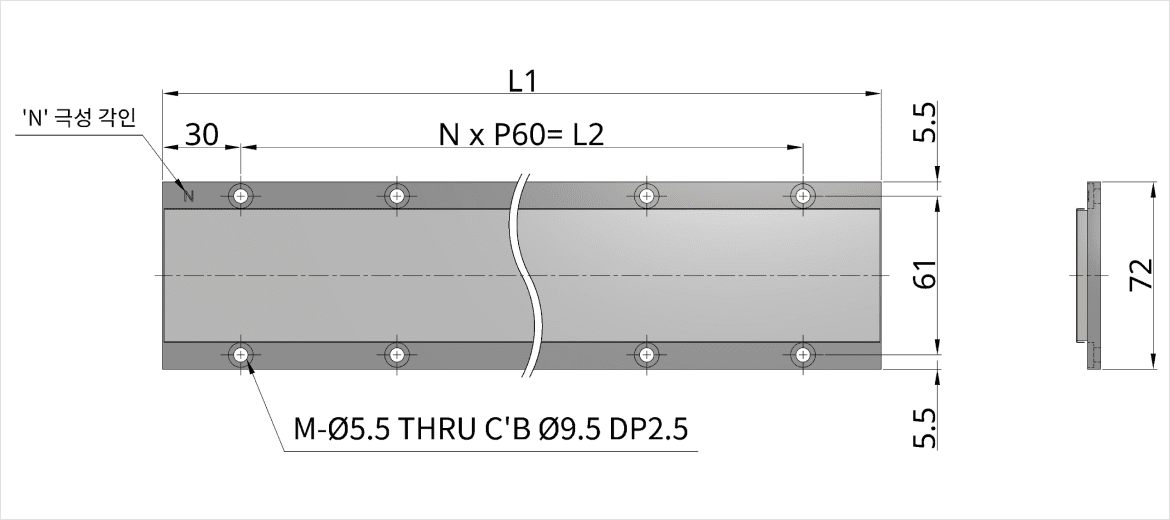

General Dimensions (Stator)
| MODEL (CM) | L1 | L2 | N | M | WEIGHT (KG) |
|---|---|---|---|---|---|
| CM240 | 240 | 180 | 3 | 8 | 1.1 |
| CM300 | 300 | 240 | 4 | 10 | 1.3 |
| CM360 | 360 | 300 | 5 | 12 | 1.6 |
| CM420 | 420 | 360 | 6 | 14 | 1.9 |
| CM480 | 480 | 420 | 7 | 16 | 2.1 |
| CM540 | 540 | 480 | 8 | 18 | 2.4 |
| CM600 | 600 | 540 | 9 | 20 | 2.7 |
