TSA-CM Series
Platen, Core Type Linear Motor
TSA-CM Series
TSA-CM Series has improved driving force by applying
laminated core Optimal design of efficient
magnetic circuit
laminated core Optimal design of efficient
magnetic circuit
Rated Condition : Continuous
Voltage Endurance : AC1500V, 1Min
Operating Temperature : 0~40oc
Power : 3-phase AC200~230V
Specification
General Dimensions
Specification
| CM10S | CM20S | CM30S | CM40S | ||
|---|---|---|---|---|---|
| Force [N] | Continuous | 75 | 150 | 230 | 290 |
| MAX | 225 | 450 | 690 | 870 | |
| Curmet [Ams] |
Continuous | 3.8 | 3.8 | 3.8 | 3.8 |
| MAX | 11.4 | 11.4 | 11.4 | 11.4 | |
| Black EMF [Vrms / (m/sec]] | 7.0 | 13.5 | 20.9 | 26.8 | |
| Force Constant [N/Arms] | 19.7 | 39.5 | 60.5 | 76.6 | |
| Resistance [Ω] | 1.7 | 3.4 | 5.0 | 6.7 | |
| Inductance [mH] | 3.0 | 5.7 | 8.5 | 11.5 | |
|
Magnetic Attraction Force [N] |
400 | 750 | 1100 | 1500 | |
| Mover Mass [Kg] ¹⁾ | 0.7 | 1.3 | 1.9 | 2.4 | |
1) With Hall Sensor Module

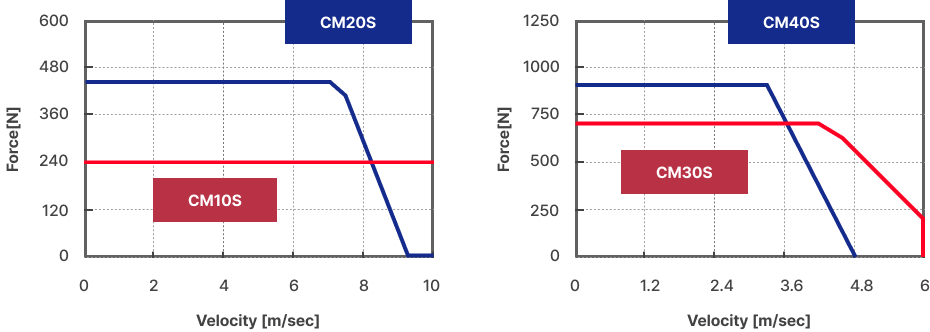

Force-speed characteristic

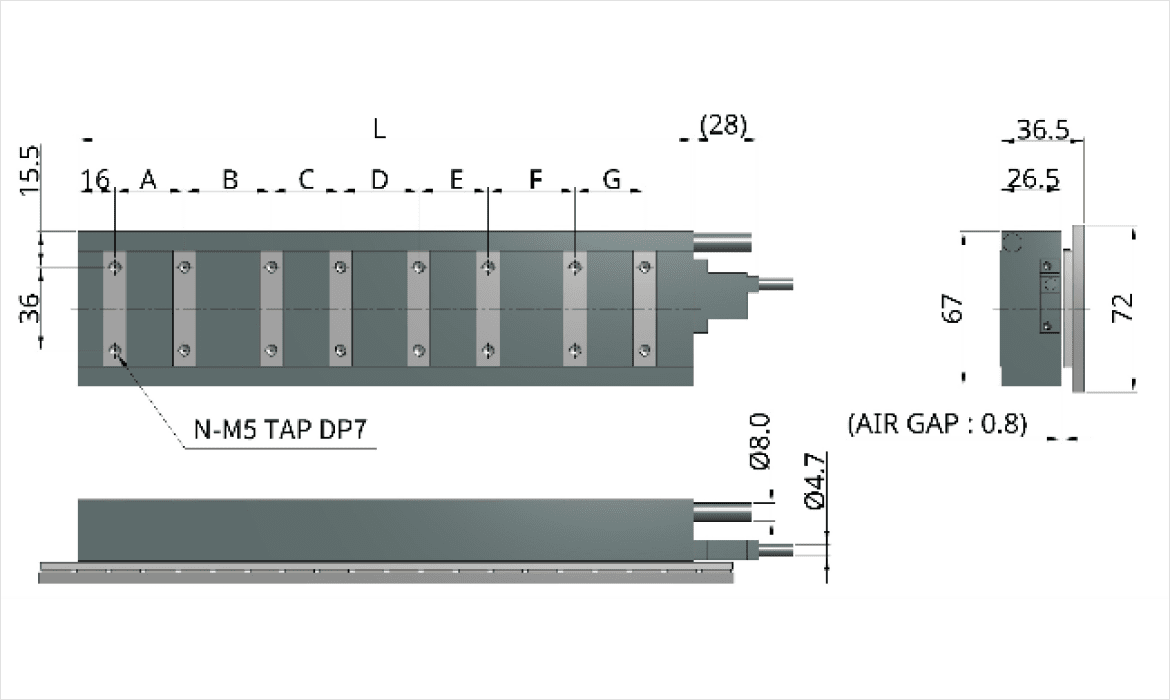

General Dimensions (Linear Motor)
| MODEL (CM) | L | N | A | B | C | D | E | F | G | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|
| CM10S | 67 | 4 | 30 | - | - | - | - | - | - | 0.7 |
| CM20S | 135.5 | 8 | 3 | 37.5 | 30 | - | - | - | - | 1.3 |
| CM30S | 207 | 12 | 30 | 40 | 30 | 40 | 30 | - | - | 1.9 |
| CM40S | 266 | 16 | 30 | 37.5 | 30 | 33.75 | 30 | 37.5 | 30 | 2.4 |
Motor Power
| PIN | Signal | Color |
|---|---|---|
| 1 | U | Red |
| 2 | V | Yellow |
| 3 | W | Blue |
| 4 | FG | Green |
※ Housing : Amp 172167-1
Hall Sensror
| PIN | Signal | Color | PIN | Signal | Color |
|---|---|---|---|---|---|
| 1 | HA | Orange | 4 | 5P | Red |
| 2 | HB | White | 5 | 5G | Black |
| 3 | HC | Blue | 6 | SHILED | - |
※ Housing : Molex 5557-06R

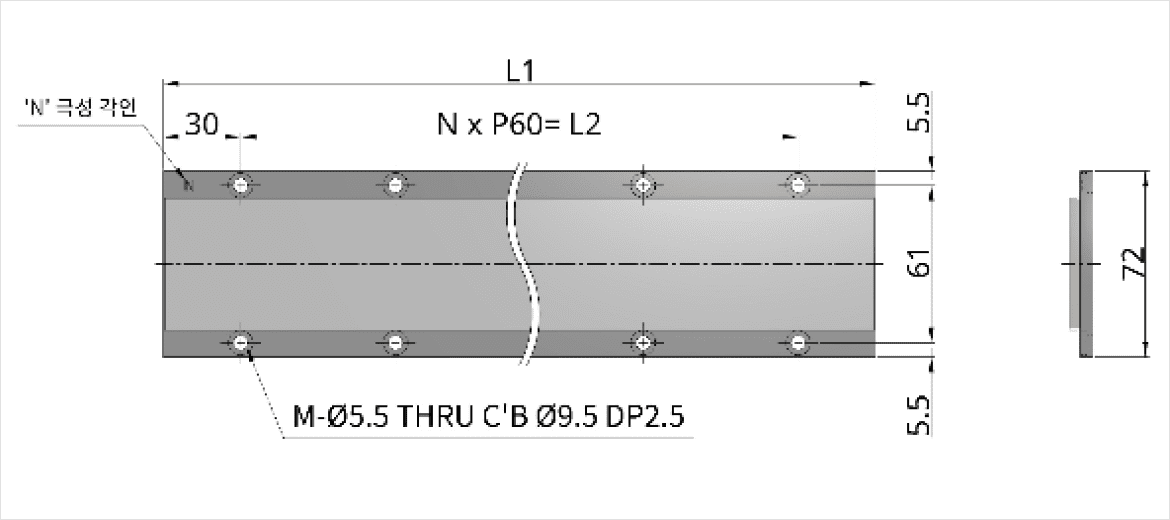

General Dimensions (Stator)
| MODEL (CM) | L1 | L2 | N | M | WEIGHT (KG) |
|---|---|---|---|---|---|
| CM240 | 240 | 180 | 3 | 8 | 1.1 |
| CM300 | 300 | 240 | 4 | 10 | 1.3 |
| CM360 | 360 | 300 | 5 | 12 | 1.6 |
| CM420 | 420 | 360 | 6 | 14 | 1.9 |
| CM480 | 480 | 420 | 7 | 16 | 2.1 |
| CM540 | 540 | 480 | 8 | 18 | 2.4 |
| CM600 | 600 | 540 | 9 | 20 | 2.7 |
