TSA-CS Series
Platen, Core Type Linear Motor
TSA-CS Series
TSA-CS Series has improved driving force by applying
laminated core Optimal design of efficient
magnetic circuit
laminated core Optimal design of efficient
magnetic circuit
Rated Condition : Continuous
Voltage Endurance : AC1500V, 1Min
Operating Temperature : 0~40oc
Power : 3-phase AC200~230V
Specification
General Dimensions
Specification
| CS10S | CS20S | CS30S | CS40S | ||
|---|---|---|---|---|---|
| Force [N] | Continuous | 40 | 75 | 120 | 150 |
| MAX | 120 | 225 | 360 | 450 | |
| Curmet [Ams] |
Continuous | 2.0 | 2.0 | 2.0 | 2.0 |
| MAX | 6.0 | 6.0 | 6.0 | 6.0 | |
| Black EMF [Vrms / (m/sec]] | 7.1 | 13.7 | 21.1 | 27.2 | |
| Force Constant [N/Arms] | 20.0 | 37.5 | 60.0 | 75.0 | |
| Resistance [Ω] | 3.8 | 7.6 | 11.3 | 15.0 | |
| Inductance [mH] | 6.0 | 10.9 | 16.3 | 22.3 | |
|
Magnetic Attraction Force [N] |
200 | 360 | 580 | 750 | |
| Mover Mass [Kg] ¹⁾ | 0.5 | 0.8 | 1.1 | 1.5 | |
1) With Hall Sensor Module

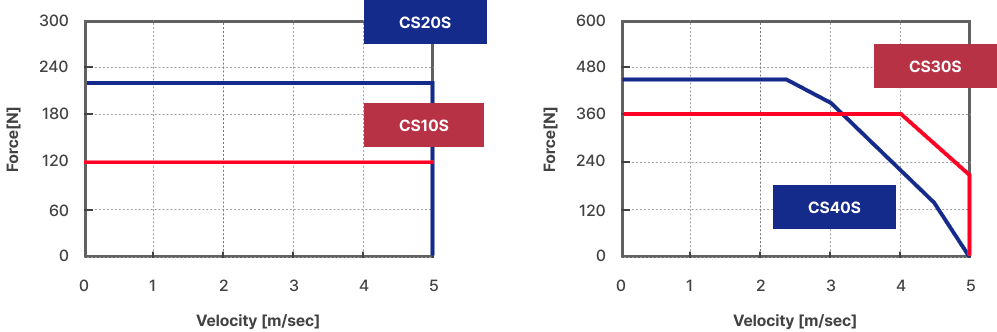

Force-speed characteristic

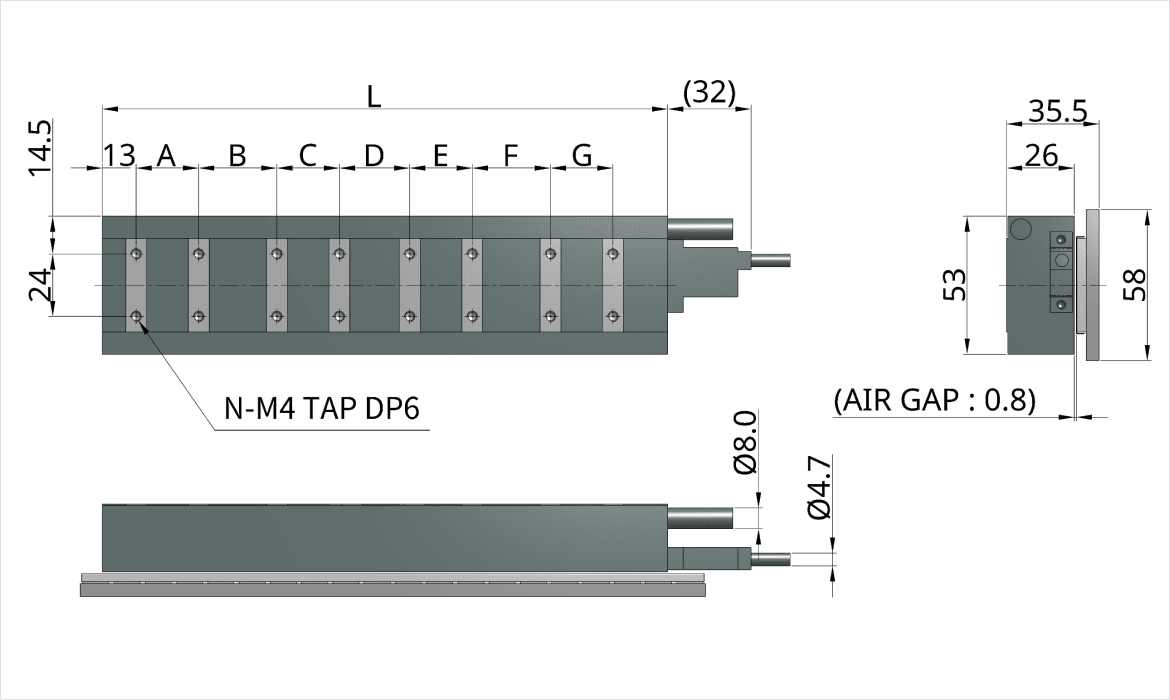

General Dimensions (Linear Motor)
| MODEL (CM) | L | N | A | B | C | D | E | F | G | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|
| CS10S | 57.5 | 4 | 24 | - | - | - | - | - | - | 0.5 |
| CS20S | 112.5 | 8 | 24 | 30 | 24 | - | - | - | - | 0.8 |
| CS30S | 169.5 | 12 | 24 | 32 | 24 | 32 | 24 | - | - | 1.4 |
| CS40S | 217 | 16 | 24 | 30 | 24 | 27 | 24 | 30 | 24 | 1.5 |
Motor Power
| PIN | Signal | Color |
|---|---|---|
| 1 | U | Red |
| 2 | V | Yellow |
| 3 | W | Blue |
| 4 | FG | Green |
※ Housing : Amp 172167-1
Hall Sensror
| PIN | Signal | Color | PIN | Signal | Color |
|---|---|---|---|---|---|
| 1 | HA | Orange | 4 | 5P | Red |
| 2 | HB | White | 5 | 5G | Black |
| 3 | HC | Blue | 6 | SHILED | - |
※ Housing : Molex 5557-06R
General Dimensions (Stator)
| MODEL (CM) | L1 | L2 | N | M | WEIGHT (KG) |
|---|---|---|---|---|---|
| CS192 | 192 | 144 | 3 | 8 | 0.6 |
| CS240 | 240 | 192 | 4 | 10 | 0.8 |
| CS288 | 288 | 240 | 5 | 12 | 1.0 |
| CS336 | 336 | 28 | 6 | 14 | 1.2 |
| CS480 | 480 | 432 | 9 | 20 | 1.6 |
